Introduction

In this document you will find basic examples on how to prepare UNEX inputs for some typical jobs, run them and analyse respective outputs. In the various examples below I have tried to utilize real experimental data as much as possible, so you can see realistic use cases. Some theoretical values, mostly from quantum chemical calculations, occasionally can appear. They also correspond to modern state of the art in this field.

Rotational spectroscopy

In context of rotational spectroscopy UNEX can be used for refinement of molecular structure from rotational constants.

A simple example of structure refinement

As a simple example we take sulfur dichloride SCl2, for which rotational constants have been experimentally determined in the work of Bizzocchi et al. [1]. Below you will find a step-by-step tutorial on how to refine the structure of this molecule using UNEX.

First steps

In the C2v symmetry SCl2 molecule has only two independent geometrical parameters and we can refine them from three experimental rotational constants of only single parent isotopologue. Lets create UNEX input file and as the very first lines we add the following minimal set of commands:

BASE: READ <BASE>,</BASE>
ZMATRIX: READ mol <ZMAT>,</ZMAT>
LSQFUNC: MINIMIZE ROTCON
STOP:

UNEX will interpret these commands line by line:

  1. BASE:READ — reading of basic information, including definition of the molecule, which is located between tags <BASE> and </BASE>.

  2. ZMATRIX:READ — for the molecule mol reading of Z-matrix located between tags <ZMAT> and </ZMAT>.

  3. LSQFUNC:MINIMIZE — minimization of least squares functional consisting of rotational constants, i.e. refinement of the molecular structure.

  4. STOP — termination of UNEX execution.

Now we need to provide the field of data expected by the BASE:READ command. Add to the input file the block:

<BASE>
 Molecules=mol
</BASE>

which contains the only single keyword Molecules. We use it to define the identifier mol for our molecule. When interpreting this keyword UNEX expects a molecule-specific field between tags constructed on the basis of the molecule identifier as <mol> and </mol>. Lets create and fill in this field with required for our purposes data:

<mol>
 Formula=SCl2
 RotConModel=rrpatm
 # Experimental constants from Bizzocchi et. al, J. Mol. Spectr., 204 (2000) 275.
 RotAExpVal=14613.57789
 RotAExpStdev=0.00057
 RotBExpVal=2920.86641
 RotBExpStdev=0.00013
 RotCExpVal=2430.69088
 RotCExpStdev=0.00012
</mol>

Here we define:

  • the formula of the molecule as Formula=SCl2;

  • for demonstration purposes, the model for rotational constants as rrpatm, although this is not strictly necessary in our case;

  • experimental values for rotational constants using the RotAExpVal, RotBExpVal and RotCExpVal keywords. Note, the input units are MHz, which is the default option in UNEX;

  • respective standard deviations with the keywords RotAExpStdev, RotBExpStdev and RotCExpStdev.

Now for the ZMATRIX:READ command we need to provide the actual Z-matrix of our molecule. Add to the file the following block:

<ZMAT>
Cl
S  1 Rscl
Cl 2 Rscl 1 Aclcl

Rscl      2.0   1
Aclcl   103.0   2
</ZMAT>

This Z-matrix defines two internal geometrical parameters, the bond length Rscl (one parameter for both bonds) and the angle Aclcl, with respective initial values. We want the refine both parameters, so next to their values we also define refinement group numbers as 1 and 2. Note, here we use two different groups, thus the parameters will be refined independently from each other.

Now your input file is ready, its content must be similar to that of the file SCl2_1.inp coming with this tutorial. We can run UNEX with this file and inspect the produced output file. The part of the output from the refinement goes after the line LSQ functional processing …​. You can see some information on experimental data, parameters to be refined, the convergence of the iterative procedure and different statistics. In the statistics we may be particularly interested in line Rotational constants: ESD=3.279e+00 MaxD=2.29e+00 RMSD=1.89e+00 WRMSD=2.09e+00 MHz, which gives us maximal, root-mean-square and weighted root-mean-square deviations of rotational constants in MHz. In particular the weighted root-mean-square deviation is equal to 2.09 MHz. Also after the convergence a table with parameters is printed, for example:

Refined parameters:
Errors are 1.00 times LSQ standard deviations.
-----------------------------------------------------------------------------------------
 Group   Type             Old value        Refined value     Error   RelErr    d(X^2)/dP
-----------------------------------------------------------------------------------------
     1  ZmR            2.0000000000e+00   2.0129185079e+00  6.2e-04  3.1e-04    1.2e+04
     2  ZmAng          1.0300000000e+02   1.0282286064e+02  3.7e-02  3.6e-04    1.1e+04
-----------------------------------------------------------------------------------------

The meaning of the table content is essentially self-explaining. The refined values of the parameters are now r(S—​Cl) = 2.0129(6) Å and α(Cl—​S—​Cl) = 102.82(4) degrees, with least-squares standard deviations in parentheses. Note, we used rotational constants A0, B0 and C0 without any vibrational corrections. Thus, the refined structure is in fact of the r0 type.

After the table with parameters you can find the matrix of correlations printed as

Matrix of correlations:
-----------------------------------------------------------------------------
 1.0000
 0.1553 1.0000
-----------------------------------------------------------------------------

Fortunately, in our example this matrix is very compact. It shows that the refined parameters have correlation coefficient equal to 15.5 %.

Adding isotopologues

Bizzocchi et al. [1] determined rotational constants not only for the parent molecule of sulfur dichloride but also for its three isotopologues. We can utilize these data in our structural refinement. First of all, in the input UNEX file we need to define additional molecules corresponding to the three additional isotopologues. For this, we use the keyword IsotopMols in the field of the parent molecule:

# Parent isotopologue
<mol>
 Formula=SCl2
 IsotopMols=iso1;iso2;iso3
 # Bizzocchi et al., J. Mol. Spectr., 204 (2000) 275.
 # The values for the parent molecule:
 RotAExpVal=14613.57789
 RotAExpStdev=0.00057
 RotBExpVal=2920.86641
 RotBExpStdev=0.00013
 RotCExpVal=2430.69088
 RotCExpStdev=0.00012
</mol>

Accordingly, we add three molecule-specific fields with data for iso1, iso2 and iso3:

# [32]S[35]Cl[37]Cl
<iso1>
 Formula=SCl2
 # Bizzocchi et al., J. Mol. Spectr., 204 (2000) 275.
 RotAExpVal=14490.19459
 RotAExpStdev=0.00058
 RotBExpVal=2841.19803
 RotBExpStdev=0.00013
 RotCExpVal=2371.96585
 RotCExpStdev=0.00013
</iso1>

# [32]S[37]Cl2
<iso2>
 Formula=SCl2
 # Bizzocchi et al., J. Mol. Spectr., 204 (2000) 275.
 RotAExpVal=14365.1421
 RotAExpStdev=0.0026
 RotBExpVal=2763.20280
 RotBExpStdev=0.00024
 RotCExpVal=2314.12120
 RotCExpStdev=0.00019
</iso2>

# [34]S[35]Cl2
<iso3>
 Formula=SCl2
 # Bizzocchi et al., J. Mol. Spectr., 204 (2000) 275.
 RotAExpVal=14024.5853
 RotAExpStdev=0.0068
 RotBExpVal=2921.00225
 RotBExpStdev=0.00056
 RotCExpVal=2413.85131
 RotCExpStdev=0.00034
</iso3>

Just like for the parent molecule, we must define Z-matrices also for the additional isotopologues using the ZMATRIX:READ command:

ZMATRIX: READ iso1 <ZMAT1>,</ZMAT1>
ZMATRIX: READ iso2 <ZMAT2>,</ZMAT2>
ZMATRIX: READ iso3 <ZMAT3>,</ZMAT3>

and by providing the respective data fields:

<ZMAT1>
Cl 36.96590260
S 1 Rscl
Cl 2 Rscl 1 Aclcl

Rscl      2.0   1
Aclcl   103.0   2
</ZMAT1>

<ZMAT2>
Cl 36.96590260
S 1 Rscl
Cl 36.96590260 2 Rscl 1 Aclcl

Rscl      2.0   1
Aclcl   103.0   2
</ZMAT2>

<ZMAT3>
Cl
S 33.96786700 1 Rscl
Cl 2 Rscl 1 Aclcl

Rscl      2.0   1
Aclcl   103.0   2
</ZMAT3>

Notice how the atomic masses for the non-standard isotopes are declared right in Z-matrix bodies, next to atomic symbols. In this way we indicate only non-standard isotopes. For the other atoms UNEX automatically assigns built-in atomic masses of the most abundant isotopes, in this case 32S and 35Cl. Also note that the initial values of bond lengths and angles in all isotopologues are the same and constitute two refinement groups, 1 and 2. Thus, we are going to refine two parameters under assumption that all isotopologues have the same r0 structure.

Now your input file must be similar to the file SCl2_2.inp of this tutorial and it is ready to be processed by UNEX. The least squares refinement converges very quickly and takes less than a second on modern hardware. Note that we have now in total 12 experimental constants:

Statistics:
 Number of refined parameters: 2
 Number of data: 12
 Degrees of freedom: v=10

Interestingly, the overall agreement of model with data is now even slightly better, WRMSD=2.03e+00 MHz, than in the previous case of only one isotopologue with three experimental constants in total. Due to the increased number of statistically independent experimental data the refined parameters are now more precise, r(S—​Cl) = 2.0129(2) Å and α(Cl—​S—​Cl) = 102.82(1) degrees, and the correlation coefficient has lowered to 10 %.

We can also print Cartesian coordinates of atoms in all or selected isotopologues. After the LSQFUC command add the line

PRINT: MOLXYZ mol

This will give you the coordinates of atoms in mol. In the default format you can also see the atomic masses actually used by UNEX. In context of rotational spectroscopy it makes sense to print Cartesian coordinates in the system of principal axes of inertia tensor. For this, add the keyword PrintXYZPAS=true to the field of basic information. On the output you should get

Cartesian coordinates (Angstroms) of atoms in mol
Format: UNEX
Orientation: PAS
--------------------------------------------------------------------------------------------------
 N | At | An |       Mass      |          X          |          Y          |          Z
--------------------------------------------------------------------------------------------------
 1  Cl   17    34.968852690000 -1.57337179879261e+00  3.93893392440875e-01  0.00000000000000e+00
 2  S    16    31.972071173500  0.00000000000000e+00 -8.61627008214962e-01  0.00000000000000e+00
 3  Cl   17    34.968852690000  1.57337179879261e+00  3.93893392440875e-01  0.00000000000000e+00
--------------------------------------------------------------------------------------------------
Rot. const. (RRPATM, MHz): 1.46117876060391e+04 2.91906050564133e+03 2.43300790959393e+03

The coordinates can be visualized producing a structure like in the figure below.

Sulfur dichloride
Figure 1. SCl2 in the principal axes system.

Using vibrational corrections

Until now we refined r0 structure directly from experimental rotational constants A0, B0 and C0. Omitting a discussion of disadvantages related to this type of structure, we can proceed directly to the example on how to refine structures corrected for vibrational effects. For this, next to experimental rotational constants we need to define respective vibrational corrections. Nowadays in many cases they can be routinely calculated theoretically with reasonable confidence. Even better is when you have them refined from experimental ro-vibrational spectra. In any case they must be introduced in UNEX using the keywords RotAVibCorVal, RotBVibCorVal and RotCVibCorVal. Taking your previous input file you can add the following data to the field of the parent molecule:

RotAVibCorVal=-19.2076
RotBVibCorVal=9.4715
RotCVibCorVal=9.5976

to the first isotopologue iso1:

RotAVibCorVal=-18.6655
RotBVibCorVal=9.1457
RotCVibCorVal=9.2892

to iso2:

RotAVibCorVal=-18.1413
RotBVibCorVal=8.8313
RotCVibCorVal=8.9889

and to iso3:

RotAVibCorVal=-18.6646
RotBVibCorVal=9.3391
RotCVibCorVal=9.4141

All these values are quantum-chemically calculated corrections to equilibrium structure. As a reference this tutorial provides a file SCl2_3.inp, which should also contain all the required information. Running UNEX with the prepared input leads to a much better fit with WRMSD equal to 3.50e-02 MHz. This may be compared with the previous value (2.03e+00 MHz) from the example above without any vibrational corrections. Thus we are getting here more consistent model. The refined parameters, rese(S—​Cl) = 2.011023(3) Å and αese(Cl—​S—​Cl) = 102.6808(2) degrees, are now much more precise, at least nominally. Also, in comparison to the previous values, r0(S—​Cl) = 2.0129(2) Å and α0(Cl—​S—​Cl) = 102.82(1), we see significant deviations due to the different types of structures. Note, we use the rese designation to underline that the structure is in fact semi-experimental (also known as semi-empirical) due to using theoretical vibrational corrections. Please keep in mind that obtained in this example very small standard deviations manifest only random noise in experimental data. Of course, the total errors must be larger at least due to uncertainties in vibrational corrections. This is, however, a different topic.

What we can also do in this example is to print details about rotational constants. For this, you can add the following line after the LSQFUNC command:

PRINT: ROTCON mol

On the output you get the following data for the parent molecule mol:

Model rotational constants for mol
Units: MHz
Model: rrpatm-vibc-elc1
-------------------------------------------------------------------------------------
        RRPATM       |      El. Cor.      |      Vib. Cor.     |     Total Model
-------------------------------------------------------------------------------------
A  1.459434063286e+04   0.000000000000e+00  -1.920760000000e+01   1.461354823286e+04
B  2.930307872201e+03   0.000000000000e+00   9.471500000000e+00   2.920836372201e+03
C  2.440329187413e+03   0.000000000000e+00   9.597600000000e+00   2.430731587413e+03
-------------------------------------------------------------------------------------


Experimental and model rotational constants for mol
Units: MHz
Model: rrpatm-vibc-elc1
Errors are 1.00 times standard deviations.
------------------------------------------------------------------------------
      Experimental    |   Error   |        Model       |   Error  |   Delta
------------------------------------------------------------------------------
A  1.461357789000e+04   5.70e-04    1.461354823286e+04   7.80e-02    2.97e-02
B  2.920866410000e+03   1.30e-04    2.920836372201e+03   1.35e-02    3.00e-02
C  2.430690880000e+03   1.20e-04    2.430731587413e+03   9.41e-03   -4.07e-02
------------------------------------------------------------------------------
For the defined values: RMSD=3.39e-02   WRMSD=3.61e-02 MHz

Here in the first table you can see the particular components of the model values, including the vibrational corrections. Note, in sulfur dichloride these corrections constitute about 0.1 — 0.5 % of the total rotational constants. The default model rrpatm-vibc-elc1 has also electronic correction, which will be discussed in the next example. In the second table are provided experimental and model values and respective deviations for the rotational constants separately.

Applying electronic corrections

In addition to vibrational correction our model for rotational constants contains also an electronic correction (consult UNEX manual for details). Usually they are negligibly small but in investigations of some molecules can play significant role. In UNEX the corrections are internally calculated from diagonal aa, bb and cc components of rotational g-tensors. The latter can be determined experimentally or, most usually, calculated theoretically. In the input file we define them with the keywords RotGTaaVal, RotGTbbVal and RotGTccVal for each molecule. In this example we add the following values for the parent isotopologue mol:

RotGTaaVal=-0.0361
RotGTbbVal=-0.0147
RotGTccVal=-0.0232

for iso1:

RotGTaaVal=-0.0358
RotGTbbVal=-0.0143
RotGTccVal=-0.0226

for iso2:

RotGTaaVal=-0.0355
RotGTbbVal=-0.0139
RotGTccVal=-0.0221

and for iso3:

RotGTaaVal=-0.0348
RotGTbbVal=-0.0147
RotGTccVal=-0.0231

Now the file is ready for running and must be similar to SCl2_4.inp from this tutorial. After the least-squares refinement with LSQFUNC:MINIMIZE you can see that the overall agreement is now even better, WRMSD=3.13e-02 MHz, although to a very small extent. Thus, the vibrational corrections do the major job and the electronic corrections lead to only slight improvement. The latter can sometimes even slightly worsen the agreement due to inaccuracy and inconsistency with other data. Looking at the refined parameters, rese(S—​Cl) = 2.011010(3) Å and αese(Cl—​S—​Cl) = 102.6811(2) degrees, we can see some notable shift in the bond length compared to the previous refinement without electronic corrections, i.e. rese(S—​Cl) = 2.011023(3) Å and αese(Cl—​S—​Cl) = 102.6808(2) degrees. Formally, if we consider only the provided in parentheses standard deviations, this effect could be accepted as significant. However, we keep in mind that the other sources of uncertainties are not taken into account and thus the seeming effect is rather unreliable in this particular case. After the refinement we can get lots of interesting information by executing PRINT: ROTCON all. This variant of the command prints rotational constants for all defined molecules, so that you do not need to call PRINT for each molecule individually.

In particular, for mol we get

Model rotational constants for mol
Units: MHz
Model: rrpatm-vibc-elc1
-------------------------------------------------------------------------------------
        RRPATM       |      El. Cor.      |      Vib. Cor.     |     Total Model
-------------------------------------------------------------------------------------
A  1.459462922084e+04  -2.870183433458e-01  -1.920760000000e+01   1.461354980250e+04
B  2.930334240812e+03  -2.346613381449e-02   9.471500000000e+00   2.920839274678e+03
C  2.440355543757e+03  -3.084242581278e-02   9.597600000000e+00   2.430727101331e+03
-------------------------------------------------------------------------------------


Experimental and model rotational constants for mol
Units: MHz
Model: rrpatm-vibc-elc1
Errors are 1.00 times standard deviations.
------------------------------------------------------------------------------
      Experimental    |   Error   |        Model       |   Error  |   Delta
------------------------------------------------------------------------------
A  1.461357789000e+04   5.70e-04    1.461354980250e+04   6.98e-02    2.81e-02
B  2.920866410000e+03   1.30e-04    2.920839274678e+03   1.21e-02    2.71e-02
C  2.430690880000e+03   1.20e-04    2.430727101331e+03   8.43e-03   -3.62e-02
------------------------------------------------------------------------------
For the defined values: RMSD=3.08e-02   WRMSD=3.23e-02 MHz

Now you can see how large are the absolute values of electronic corrections in sulfur dichloride. For the parent molecule, as well as for other isotopologues, they are of the order 3×10-1 MHz for A and 3×10-2 HMz for B and C, which is 0.5 — 1.5 % of the corresponding vibrational correction or 0.001 — 0.002 % of the total rotational constant.

At this point we can consider our refinement as complete.

Gas electron diffraction

Historically UNEX has been designed as a full-featured software for comprehensive support of experimental gas-phase electron diffraction (GED) studies. Below are presented some use cases with usually appearing scenarios.

Structure refinement

One of the most important stages in a typical GED investigation is the structure refinement. In this chapter you can learn how to solve this problem using UNEX.

A simple example

As an example we take a portion of experimental diffraction data measured for carbon tetrachloride CCl4 in the work of Vishnevskiy et al. [2]. The molecules of CCl4 are small and highly symmetric (Td point group) and thus are very convenient for a GED structural analysis. It is also handy from the experimental point of view, since diffraction patterns can be easily measured for this compound.

In this simple example we assume that the data reduction and electron wavelength calibration have already been done and we take for the analysis only one experimental total intensity curve. Our next steps are briefly as follows:

  1. We define the complete initial model of our molecule with all parameters required for the calculation of the model molecular intensity,

  2. introduce the experimental total diffraction intensity,

  3. extract molecular part from the total intensity,

  4. refine the molecular parameters using the least-squares method,

  5. print and analyze the results.

So lets start from the very beginning. Below are described commands, which should be added line-by-line to a newly created UNEX input file.

First, we must introduce some basic information

BASE: READ <BASE>,</BASE>
STOP:

<BASE>
 Molecules=mol
</BASE>

<mol>
 Formula=CCl4
</mol>

Next we define a geometrical model for the molecule. In this example we use geometrically-consistent GED model, so the structure must be defined as a Z-matrix with the command (right after BASE:)

ZMATRIX: READ mol <ZMAT>,</ZMAT>

and providing the required field

<ZMAT>
Cl
C  1 R1
Cl 2 R1 1 A1
Cl 2 R1 1 A1 3 A1 -1
Cl 2 R1 1 A1 3 A1  1

R1      1.763                  2
A1    109.4712206344907
</ZMAT>

Note, to the R1 parameter we already assigned the group number 2. This is not required now, but will be used below in the actual refinement procedure. When introducing Z-matrices it is advised to check their correctness by printing calculated Cartesian coordinates. This can be done with the command

PRINT: MOLXYZ mol

and visualizing the printed coordinates by any suitable software. Note, you can print data in different formats, see manual for details. You may also want to check the symmetry of your input structure by using

PRINT: MOLSYM mol

For our example this command must produce some information on symmetry elements and also the line

Point group: Td [4C3,3C2,3S4,6P,E]

which is what we expect for CCl4.

Next we introduce information on GED terms (interatomic pairs) for the molecule with the EDTERMS command:

EDTERMS: READ mol <TERMS>,</TERMS> Format=unex

Add the corresponding data field to the input file with precalculated values:

<TERMS>
#At1 At2      r_a        l         cor      G
C2   Cl1    1.7609     0.0521    -0.0066    3
C2   Cl3    1.7609     0.0521    -0.0066    3
C2   Cl4    1.7609     0.0521    -0.0066    3
C2   Cl5    1.7609     0.0521    -0.0066    3
Cl1  Cl3    2.8755     0.0676    -0.0090    4
Cl1  Cl4    2.8755     0.0676    -0.0090    4
Cl1  Cl5    2.8755     0.0676    -0.0090    4
Cl3  Cl4    2.8755     0.0676    -0.0090    4
Cl3  Cl5    2.8755     0.0676    -0.0090    4
Cl4  Cl5    2.8755     0.0676    -0.0090    4
</TERMS>

Here we are tying together amplitudes for the bonded distances C—​Cl in the refinement group number 3, and the amplitudes for the non-bonded distances Cl…​Cl in the group 4.

At this point the molecular model is defined completely and we can introduce the diffraction data. With the command EDDATA UNEX will read-in the experimental total diffraction intensity:

EDDATA: READ <EDINT>,</EDINT>

The initial part of the respective data field looks like:

<EDINT>
Set=ed1  Data=s;iTotExp  ImolSf=1.0  ImolSfRefGrp=1
 6.20  11.7659129739
 6.40  11.9934137749
 6.60  12.3881941876

For the complete data see the file CCl4_1.inp supplemented to this tutorial. For the refinement we assign the group number 1 to the scale factor of the molecular intensity. The initial value for this factor is also explicitly defined as ImolSf=1.0. Now the ED data set ed1 is defined and we can use this identifier later in other commands.

For the calculation of model intensities we must introduce ED scattering factors. In UNEX they can be calculated simply by calling the EDSCATFAC command. Add the following line after the EDDATA:READ call:

EDSCATFAC: CALC mol Lambda=0.048707

With the keyword Lambda we indicate the calibrated electron wavelength.

For the least-squares refinement we need experimental molecular intensity function. It must be extracted from the total intensity, which is in the ED data set ed1. For this use the command EDIMOL:

EDIMOL: GETEXP ed1  BgrSplNInflMax=3  ItotModel=mbgr

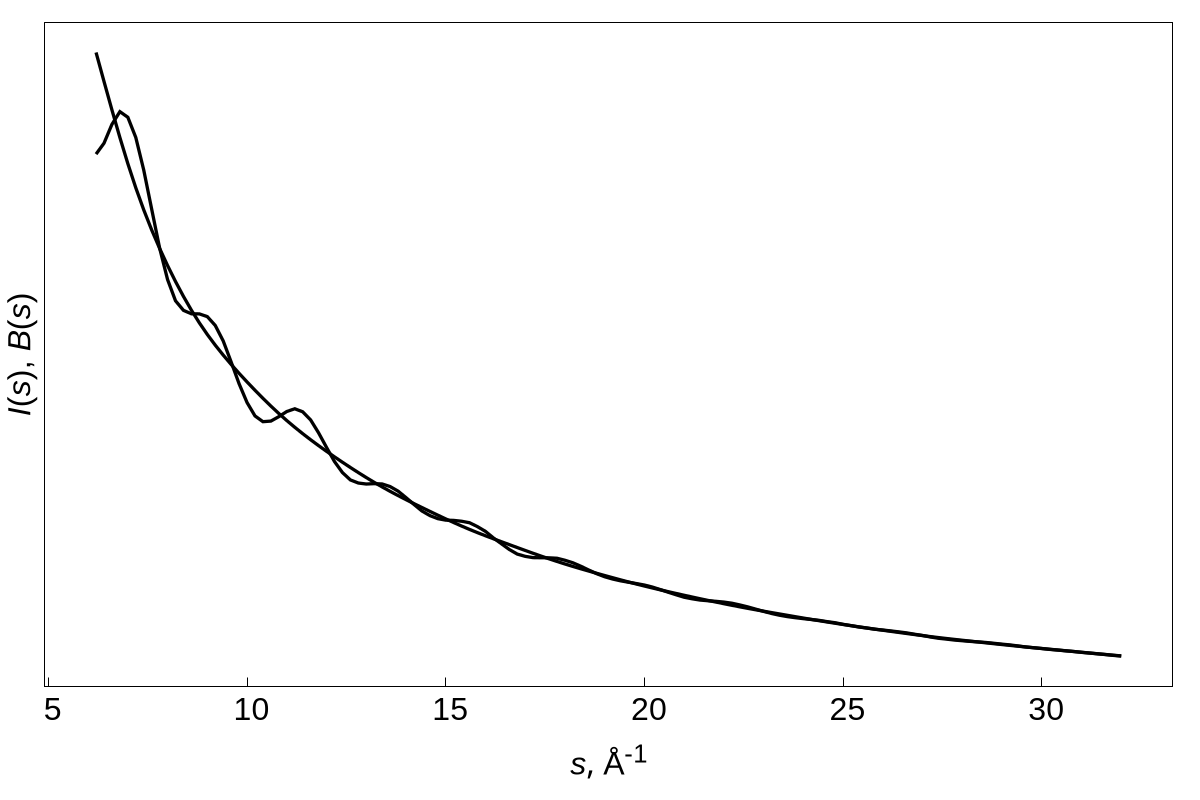

In this procedure the total intensity is decomposed into molecular and background components. As the model we choose mbgr, i.e. containing multiplicative background. The background will be approximated with a cubic spline and as a smoothness criterion we allow no more than 3 inflection points. Note, the actual number of inflection points may be smaller. UNEX prints this information on output. In this example you should get

 Number of inflection points 2, requested 3

Finally we have both model and data ready for the refinement. For the least-squares determination of parameters we must use the LSQFUNC command. Add the following line for minimization of the LSQ functional built on ED sM(s) function from the ed1 data set:

LSQFUNC: MINIMIZE EDSMS ed1

From this command UNEX prints lots of important information to the output file, including the initial values of parameters and LSQ functional, convergence during the iterations and at the end, statistics of the refinement, a table with refined parameters and correlation matrix. After the convergence we have the best (minimal) achieved R-factor

  Total sM(s) Rf=6.157  wRd=6.157

Initial and refined parameters, as well as corresponding least-squares standard deviations, are printed in the table:

Refined parameters:
Errors are 1.00 times LSQ standard deviations.
-----------------------------------------------------------------------------------------
 Group   Type             Old value        Refined value     Error   RelErr    d(X^2)/dP
-----------------------------------------------------------------------------------------
     1  EDImolSf       1.0000000000e+00   8.8210443905e-01  7.6e-03  8.6e-03   -2.8e-14
     2  ZmR            1.7630000000e+00   1.7604005167e+00  2.6e-04  1.5e-04    3.5e-07
     3  EDTrmAmpl+     5.2100000000e-02   4.7047497358e-02  8.9e-04  1.9e-02   -6.5e-08
     4  EDTrmAmpl+     6.7600000000e-02   6.9215439794e-02  5.4e-04  7.8e-03   -3.4e-07
-----------------------------------------------------------------------------------------

Next are printed the correlation coefficients:

Matrix of correlations:
-----------------------------------------------------------------------------
 1.0000
 0.0498 1.0000
 0.4876 0.0026 1.0000
 0.7298 0.0264 0.3702 1.0000
-----------------------------------------------------------------------------

As you can see, the refinement procedure has changed the values of parameters substantially. We need to keep in mind that the EDIMOL:GETEXP procedure used model-dependent background (see UNEX manual for details). Thus, if the model has significantly changed, it makes sense to repeat again the combination of molecular intensity extraction and parameter refinement. Add these two lines (same as before) to the input file:

EDIMOL: GETEXP ed1  BgrSplNInflMax=3  ItotModel=mbgr
LSQFUNC: MINIMIZE EDSMS ed1

After the second LSQ functional minimization you should get a better (lower) R-factor

  Total sM(s) Rf=5.054  wRd=5.054

and the refined parameters

Errors are 1.00 times LSQ standard deviations.
-----------------------------------------------------------------------------------------
 Group   Type             Old value        Refined value     Error   RelErr    d(X^2)/dP
-----------------------------------------------------------------------------------------
     1  EDImolSf       8.8210443905e-01   8.6731619200e-01  6.1e-03  7.0e-03   -5.6e-14
     2  ZmR            1.7604005167e+00   1.7601265599e+00  2.1e-04  1.2e-04    4.6e-07
     3  EDTrmAmpl+     4.7047497358e-02   4.6372855337e-02  7.3e-04  1.6e-02    1.6e-08
     4  EDTrmAmpl+     6.9215439794e-02   6.9282520045e-02  4.4e-04  6.4e-03   -3.3e-08
-----------------------------------------------------------------------------------------

The changes between the old (before this last refinement) and new (after the refinement) values are now much smaller. The correlation matrix remained nearly the same

1.0000
0.0498 1.0000
0.4906 0.0026 1.0000
0.7293 0.0265 0.3721 1.0000

and shows that the largest correlation (73 %) is between the molecular intensity scale factor EDImolSf (group 1) and the vibrational amplitudes l(Cl…​Cl) tied together in group 4.

We may want to check the electron diffraction data and plot various functions for better analysis. Add the following command after the last LSQ minimization:

PRINT: EDDATA ed1  Data=iTotExp;iBgr;iMolExp;iMolMod;iMolDif

With the keyword Data is indicated that the following data types from the set ed1 are printed together:

  1. experimental total intensity,

  2. background intensity,

  3. experimental molecular intensity,

  4. model molecular intensity,

  5. difference between experimental and model molecular intensities.

These data can be visualized by any suitable software. We can use the UIntPlot program bundled together with UNEX. Starting it in the command line as

uintplot --data tot,bgr --curves ed1 CCl4_1.log

will produce a plot of the experimental total intensity with the respective background line. Note, UIntPlot requires that the Gnuplot program [3] is already installed and can be started simply as gnuplot from you working directory. Also make sure that last command line argument to uintplot is the actual name of your UNEX output file.

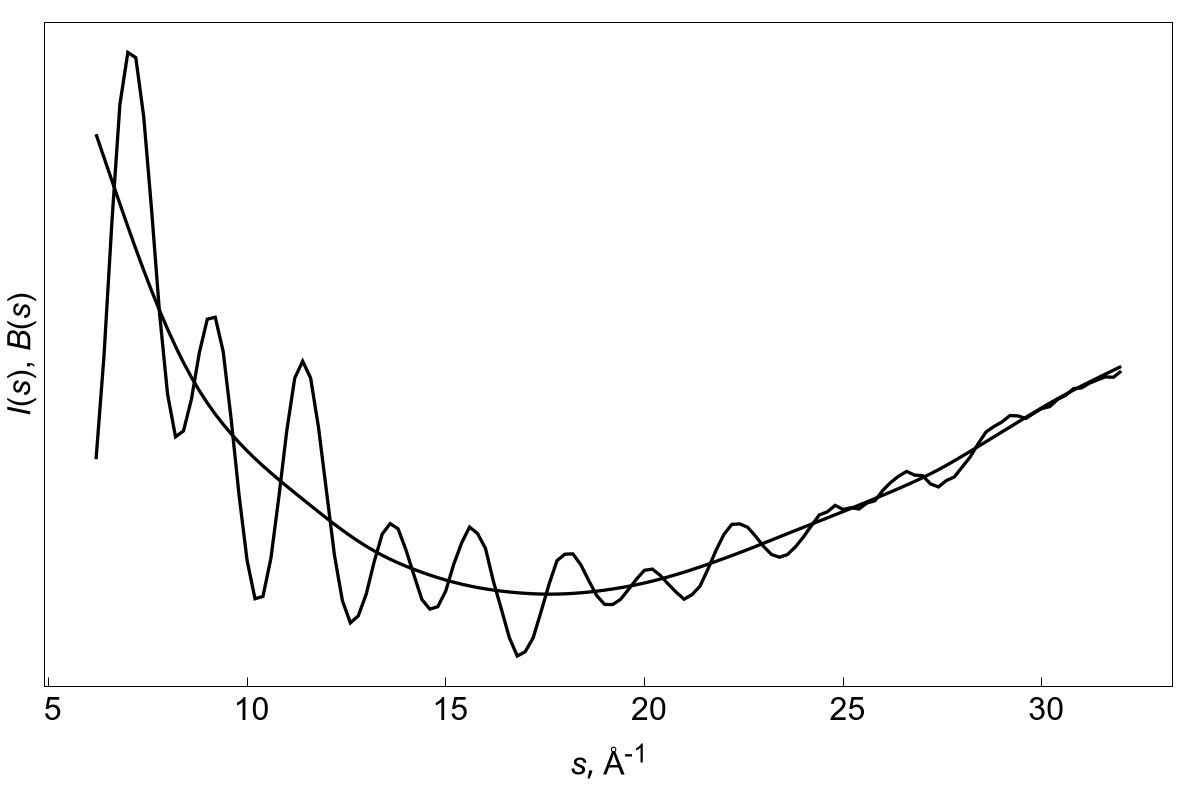

Total intensity and background of CCl4
Figure 2. Experimental total ED intensity and background line of CCl4.

Visual inspection of molecular intensity functions is also very important. We plot them running uintplot as

uintplot --data mol,mmol,dmol --curves ed1 CCl4_1.log

which produces the following image.

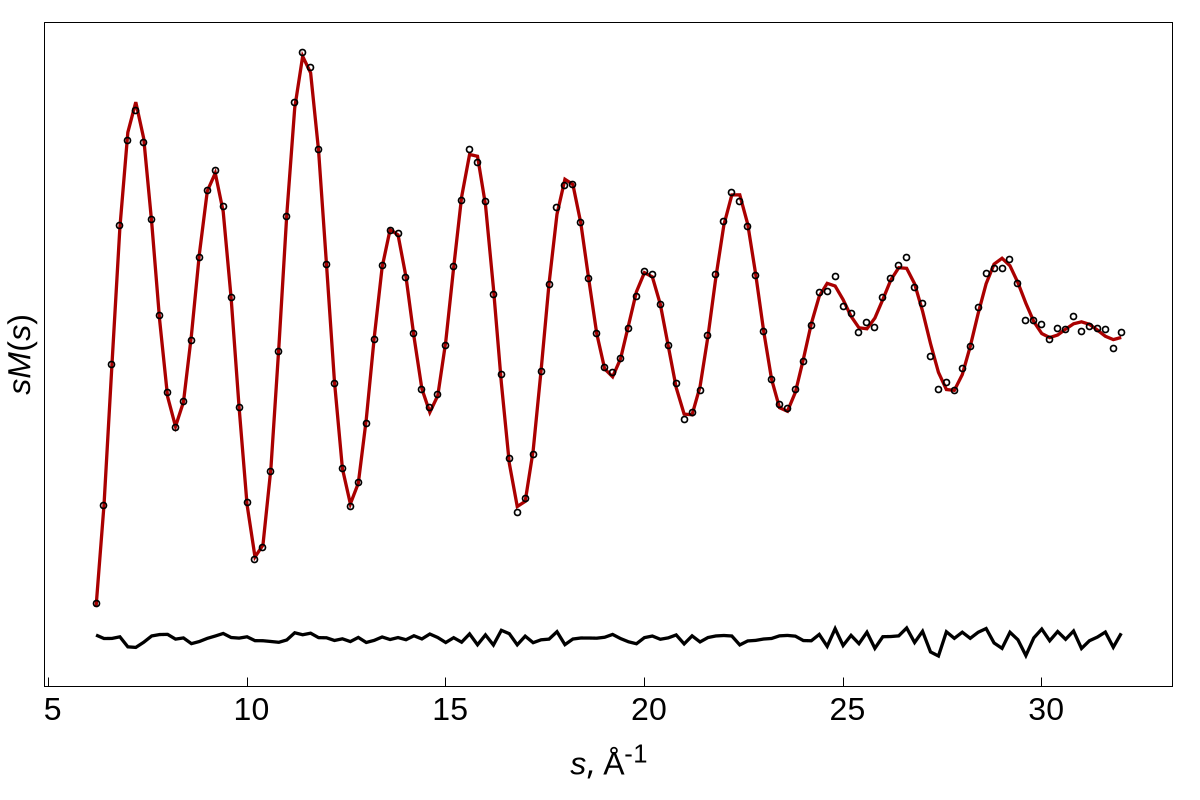

Total intensity and background of CCl4
Figure 3. Model (red line) and experimental (dots) ED molecular sM(s) intensity functions of CCl4. Below is the difference curve.

As we can see, the difference curve is rather small and shows mostly random deviations between experimental data and model. Thus the fit is acceptable.

Usually electron diffraction data are also represented in the form of radial distribution functions (RDF). UNEX will calculate them, if you add the following command:

EDRDF: CALC ed1

Also, for the visualization it is convenient to print the ED terms as

PRINT: EDTERMS mol  Format=urdfplot

Now after processing of all commands your UNEX output file must contain all the data required by the URDFPlot program (also bundled together with UNEX), which is useful for plotting RDFs. Start it simply as (provide the actual name of your output file as the argument):

urdfplot CCl4_1.log

and you will get the following image.

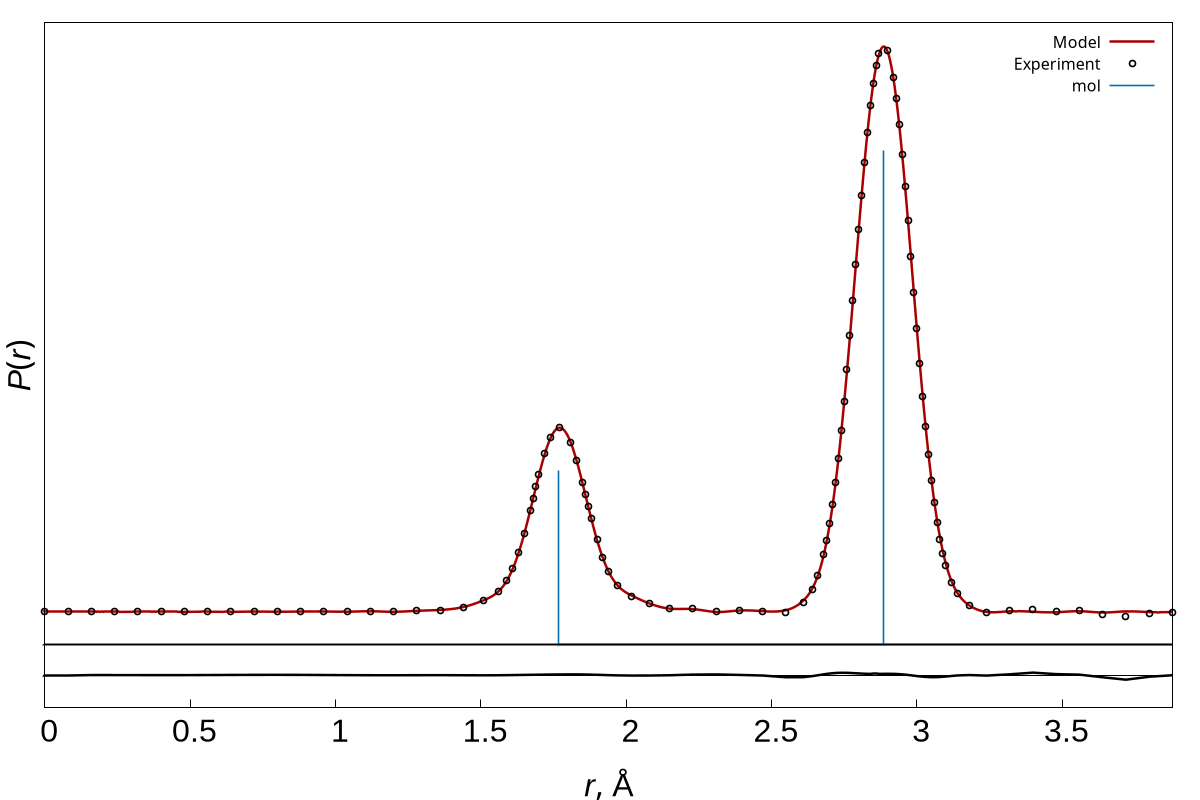

Radial distribution functions of CCl4
Figure 4. Model (red line) and experimental (dots) radial distribution functions of CCl4. Vertical lines show positions and estimated contributions of interatomic pairs into diffraction patterns. Below is the difference curve between the experimental and model data.

As we can see, in the RDF representation the difference between the experimental data and model is also small.

On the basis of the R-factor value of 5.05 % and visual inspection of deviations between experimental data and best refined model, we may now summarize the main results of our investigation of CCl4 as rese(C—​Cl) = 1.7601(2) Å, l(C—​Cl) = 0.0464(4) Å and l(Cl…​Cl) = 0.0693(4) Å, where values in parentheses are least-squares standard deviations. Note, because of the used theoretical vibrational corrections (we introduced them with EDTERMS:READ) to the equilibrium geometry, the determined structural parameter is semi-experimental rese.

The obtained here least-squares standard deviations of the refined parameters may in no case be considered as total uncertainties. In addition to random noise in experimental data, there are other various sources of errors. Their consideration is another, more difficult topic.

References

[1] L. Bizzocchi, L. Cludi, C. Degli Esposti, & A. Giorgi, Millimeter-Wave Spectroscopy of Sulfur Dichloride. J. Mol. Spectr., 204 (2000) 275–280. https://doi.org/10.1006/jmsp.2000.8223.

[2] Y. V. Vishnevskiy, S. Blomeyer, & C. G. Reuter, Gas standards in gas electron diffraction: accurate molecular structures of CO2 and CCl4. Struct. Chem., 31 (2020) 667–677. https://doi.org/10.1007/s11224-019-01443-5.

[3] T. Williams, C. Kelley, & many others, Version 6.0, http://www.gnuplot.info/. (2025).


This document has been generated on 2025-04-17 12:12:32 +0200
